NEX 913C
8th/9th Generation (Coffee Lake S, Coffee Lake S Refresh) Intel® Core™ i7/i5/i3
- Main Feature
- 8th/9th Generation (Coffee Lake S, Coffee Lake S Refresh) Intel® Core™ i7/i5/i3, Pentium® 14nm LGA 1151 socket processor, PCH Q370
- 4 x U-DIMM DDR4 with non-ECC SO-DIMM 2666MHz up to 64GB
- Support triple display VGA, DVI-D, DP , eDP
- 2 x Intel® GbE LAN ports, 6 x USB 3.1 (Gen1), 7 x USB 2.0, 5 x RS232, 1 x RS232/485/422, 1 x RS232/485, 4 x SATA 3.0, PS/2, HD audio
- 1 x PCIe x16, 4 x PCie x4, 2 x PCI, 2 x mini-PCIe, SIM card
- 8-bit DIO, onboard TPM 2.0

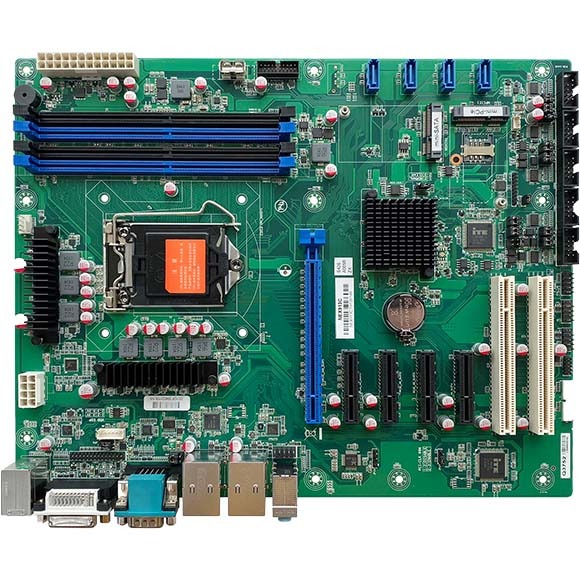

NEX 913C is an ATX board. It is equipped with the 8/9th Generation Intel® Core™ i7/i5/i3 processors to support 95W max and Intel® Q370 chipset. It comes with four DDR4 DIMM sockets up to 64GB DDR4 2666MHz with non-ECC support and integrated HD graphic controller. NEX 913C with Intel® Q370 PCH provides high performance and rich expansion. The SATA 3.0 ports with RAID 0, 1, 5, and 10, provides quick access to data files and daat protection. Furthermore, it also features an integrated Intel® AMT 12 for easier maintenance.
NEX 913C operates at a temperature range from 0°C to 60°C, the designed is aimed at embedded applications for outdoor or semi-outdoor environments, such as kiosks, outdoor systems installed in harsh environments, home automation, and thin clients.
Barebone
NEX913C (P/N: 6879MBNX9131F)
ATX, 8th/9th Generation (Coffee Lake) Intel® Core™ I (up to 95W), Q370, LGA1151, DDR4 x 4 up to 64GB, HDMI/DVI-D/VGA/eDP, 6 x USB 3.0, 7 x USB 2.0, 2 GbE, SATA x 5, 2 x mini-PCIe (SATA/PCIe), COM x 6, 1 x DB9, 1 x RS232/422/485, 1 x RS232/485, 1 x PCIe x16, 4 x PCIe x4, 2 x PCI, ATX
| Date | Description | Version | Version | Download |
|---|---|---|---|---|
| 2022-10-05 | Audio | windows | ||
| 2022-10-05 | Chipset | windows | ||
| 2022-10-05 | Graphics | windows | ||
| 2022-10-05 | ME | windows | ||
| 2022-10-05 | PROWinx64 | windows |
