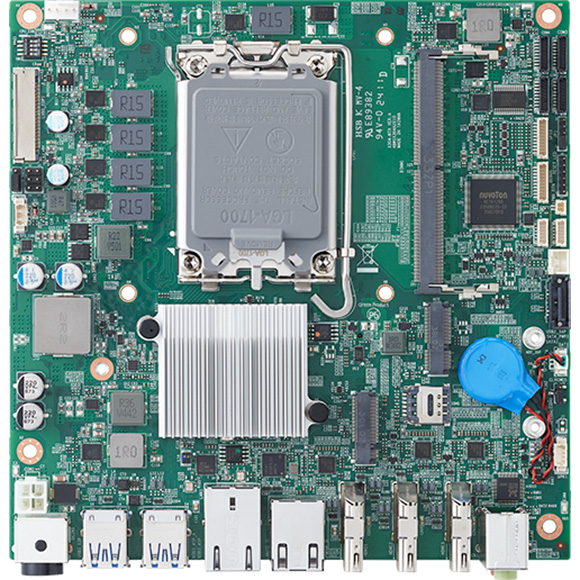

X304-MTX
X304-MTX
Mini-ITX Embedded Computing Board Powered by 13/12th Intel® Core™ Processor
Main Feature:
- 13/12th Intel® Core™ LGA 1700 socket type processors, 35W
- Dual channel DDR5 SO-DIMM, max up to 64GB
- 3 x HDMI 2.0 output, support 4K@60Hz and 1 x LVDS (supported by Q670E)
- Dual Intel® LAN ports
- 2 x COM ports, 4 x USB 3.2, Mic-in/Line-out/Speaker-out
- Onboard TPM 2.0 design
- Support Intel® AMT technology (Q670E only)
- Multiple expansion slots: M.2 2280 Key M for storage, M.2 2230 Key E for Wi-Fi, M.2 3042/3052 Key B for LTE/5G
The X304-MTX series is an industrial Mini-ITX embedded computing board powered by Intel® 13/12th Core™ i9/i7/i5/i3 processors (formerly Alder Lake-S & Raptor Lake-S) with Intel® Q670E/H610E chipset. In addition to the great computing performance, the X304-MTX series features with outstanding GPU performance driven by Intel® UHD graphics 770 engine allow for eye-catching visuals. The X304-MTX comes with rich I/O connectivity including 4 x COM ports, 8 x USB ports, 2 x LANs, 3 x HDMI 2.0 for 4K display output, 1 x LVDS connector and 1 x GPIO supported. The internal LVDS connector can be connected with panel and reach 2K resolution for multiple media & kiosk use. It also comes in great expansion possibilities, including three M.2 slots for support SSD storage, Wi-Fi and LTE/5G connectivity. The X304-MTX series is perfect to be embedded in industrial testing equipment, visual and edge computing, and measurement machine applications which need rich I/O connectivity in high demand for higher computing and graphic performance.
X304-MTX-Q (P/N:10W10X30406X0)
Main Board, X304-MTX, Q670E, 3x HDMI, 1x LVDS, 4x COM, 12~24V, bulk package 10pcs
X304-MTX-Q-S (P/N:10W10X30409X0)
Main Board, X304-MTX, Q670E, 3x HDMI, 1x LVDS, 4x COM, 12~24V, signal package 1pcs
X304-MTX-H (P/N:10W10X30407X0)
Main Board, X304-MTX, H610E, 3x HDMI, 4x COM, 12V, bulk package 10pcs
X304-MTX-H-S (P/N:10W10X30410X0)
Main Board, X304-MTX, H610E, 3x HDMI, 4x COM, 12V, signal package 1pcs
